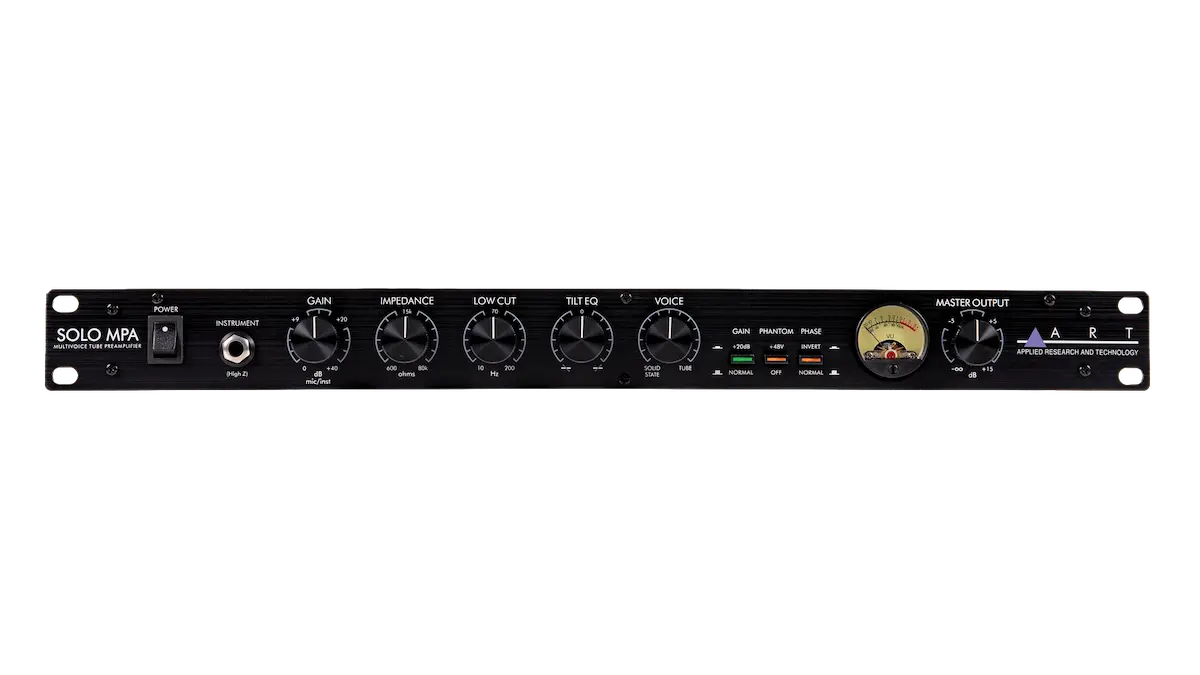

The Solo MP Multi-Voice Tube Preamplifier allows users to blend between to I pristine low-noise/low-distortion solid-state transistor circuit and a warmer Class-A tube mic preamp. The flexible EQ controls allow users to voice the Solo MPA to create their signature sound. Featuring 48V phantom power and a variable input impedance control, users can tailor of the Solo MPA to suit their microphone of choice, be it a high-quality dynamic, a studio-grade condenser, or a low-level ribbon The Solo Series of single-channel rackmount units have been developed for the recording enthusiast with a preference for simplicity.
Frequency Response 15 Hz to 50 kHz (+0, -1dB)
Dynamic range >110dB ("A" weighted)
CMRR >90dB THD <0.005% (typical
Equivalent Input Noise -129dBu (XLR, "A" weighted)
Maximum Input Level +19dBu (XLR)
Maximum Instrument Input +17dBu
Input Impedance 600-80K ohms adjustable (XLR), >800k ohms (Instrument), +27dBu (XLR)
Output Impedance < 47 ohms (XLR)
Maximum Gain 75dB
Meter Calibration OVU = +4dBu output (+4dBu mode) 0VU = -10dBV output (-10dBV mode)
Low Cut Filter Single pole, 10-200Hz adjustable
Tilt EQ
+/- 12dB adjustable
