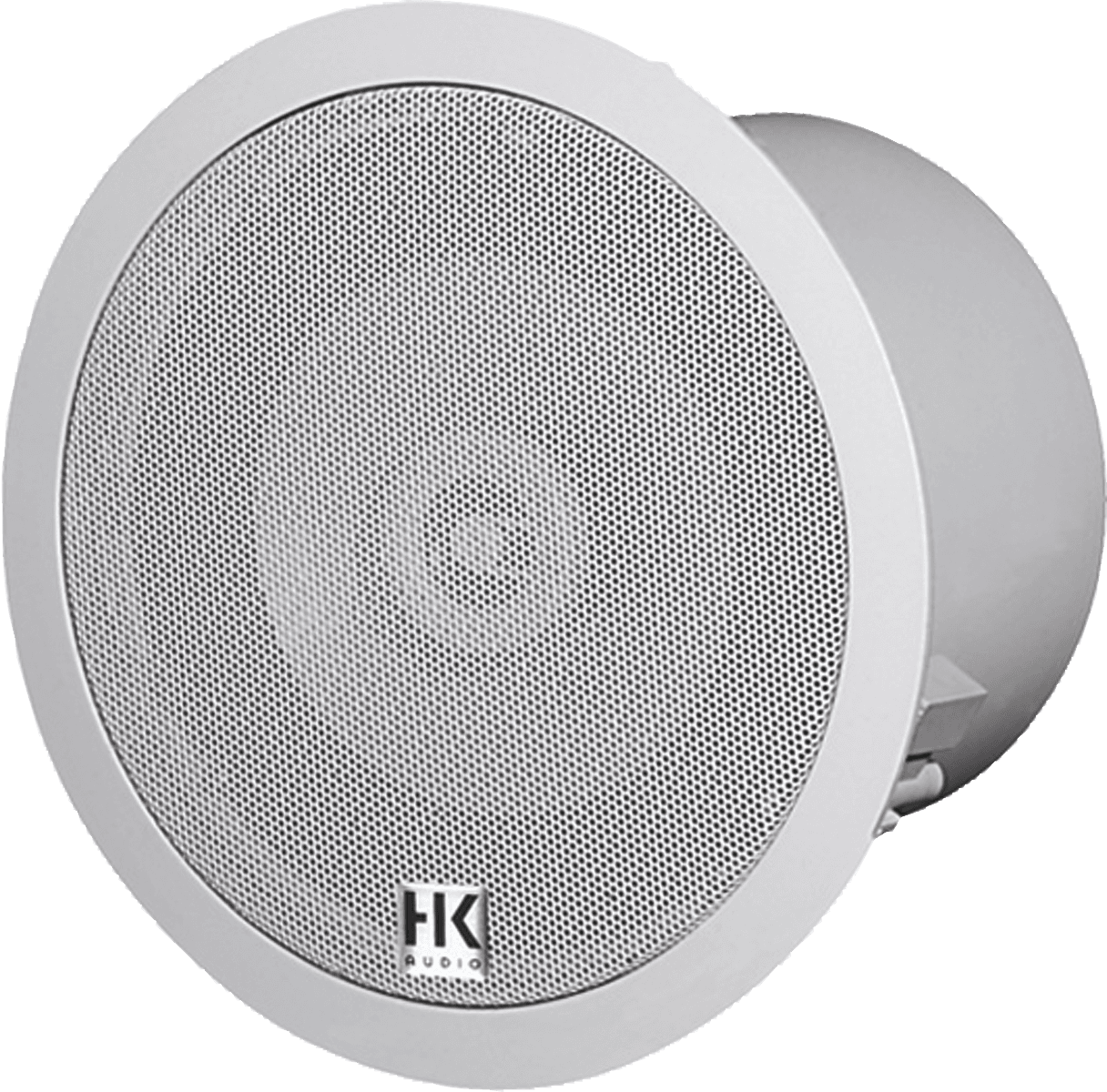

This two-way speaker is designed for installation into ceilings. It is well-suited for background and near-field sound reinforcement in foyers, boutiques, bars, restaurants, shopping centers, airports and railway stations. The enclosure is loaded with a 6.5″ woofer and a 1″ tweeter with neodymium magnets. Both drivers are aligned in coaxial array. The IL 60 CTC features a built-in passive crossover and a 100V transformer with selectable power taps (accessible from below once the speaker installed). It is housed in a metal chassis. The front bezel is made of white polymer with a metal grille insert. The unit is installed using clamps that are accessible from below. This fullrange speaker”s frequency response is wide enough for use without a subwoofer.
• Enclosed ceiling light operating in low impedance or 100V line.
• Packaging: delivered by 2 (unit price).
• Power: 40W at 8 ohms / 1, 2, 4, 8, 15W in line 100V
• Power selector accessible from the back
• Frequency response +/• 3 dB : 70 Hz • 20 kHz
• Sensitivity 1W/1M (Half-space) : 89 dB, SPL max. 106 dB (10% THD)
• Components : HP 16.5 cm / tweeter 3/4"""

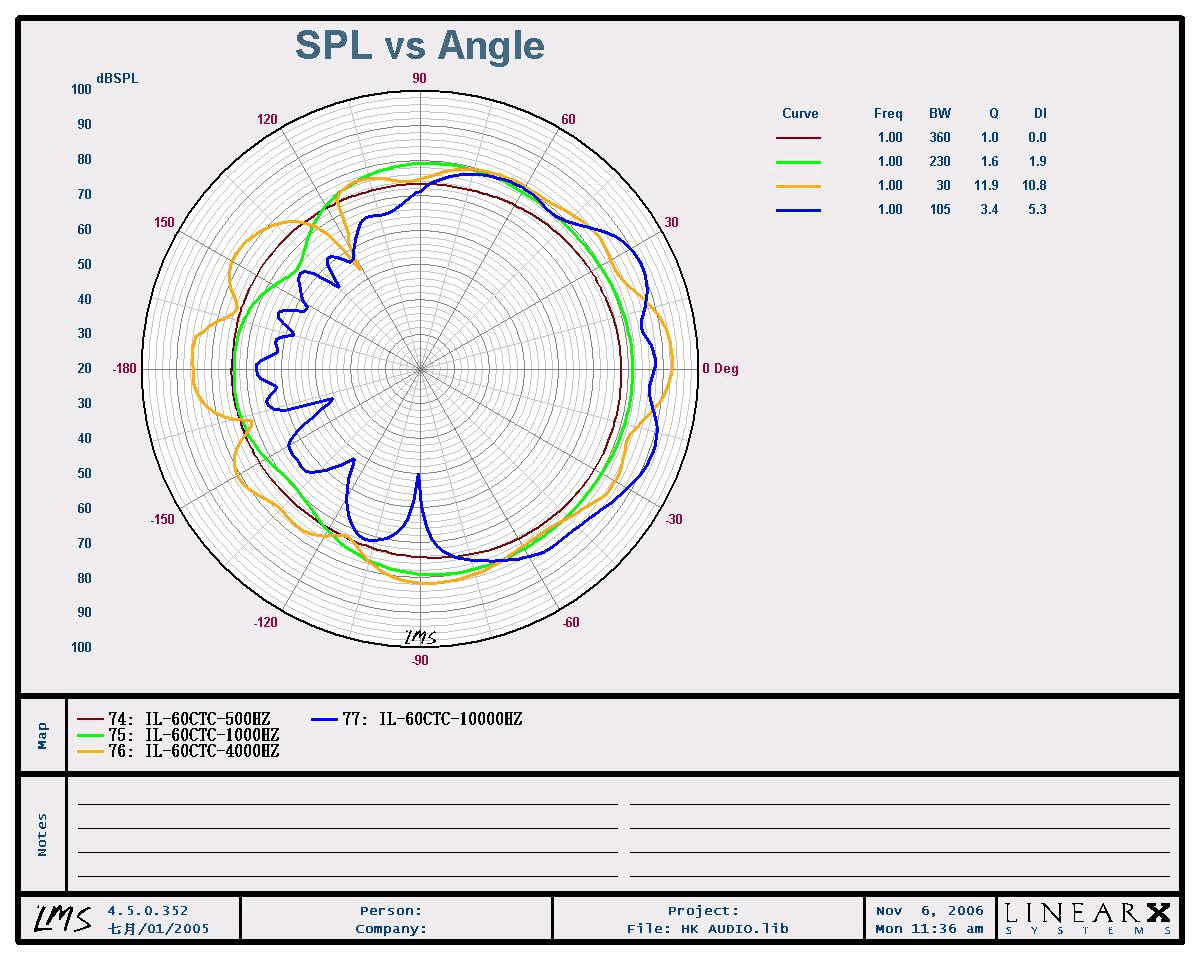

• Dispersion : 90 degrees conical
• Connectors : Terminal blocks
• Installation diameter: 18 cm / Depth: 12.7 cm
• Weight: 1.7 kg / Colour white
