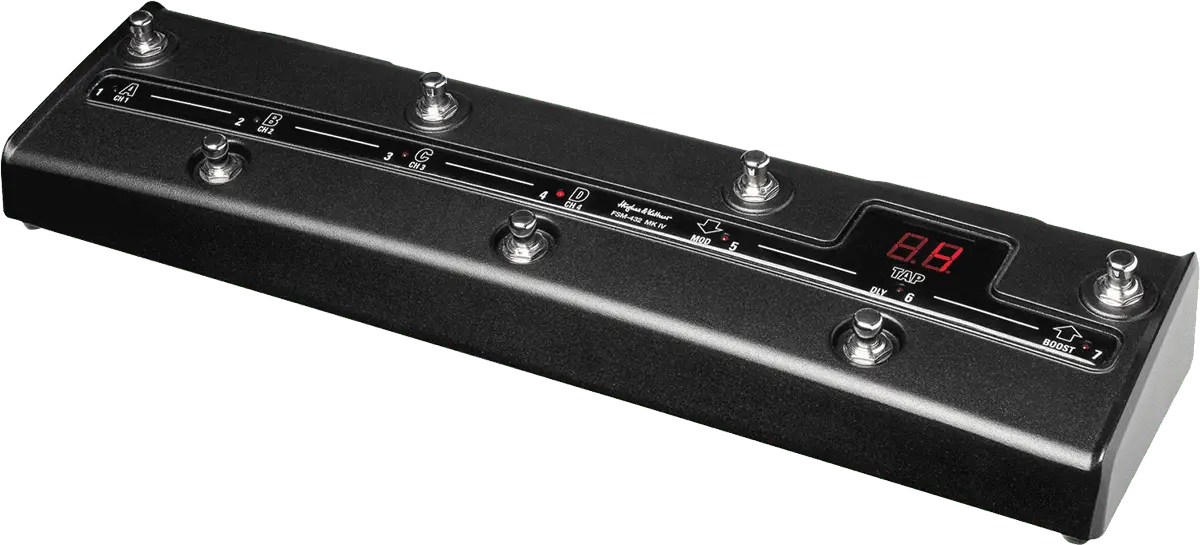

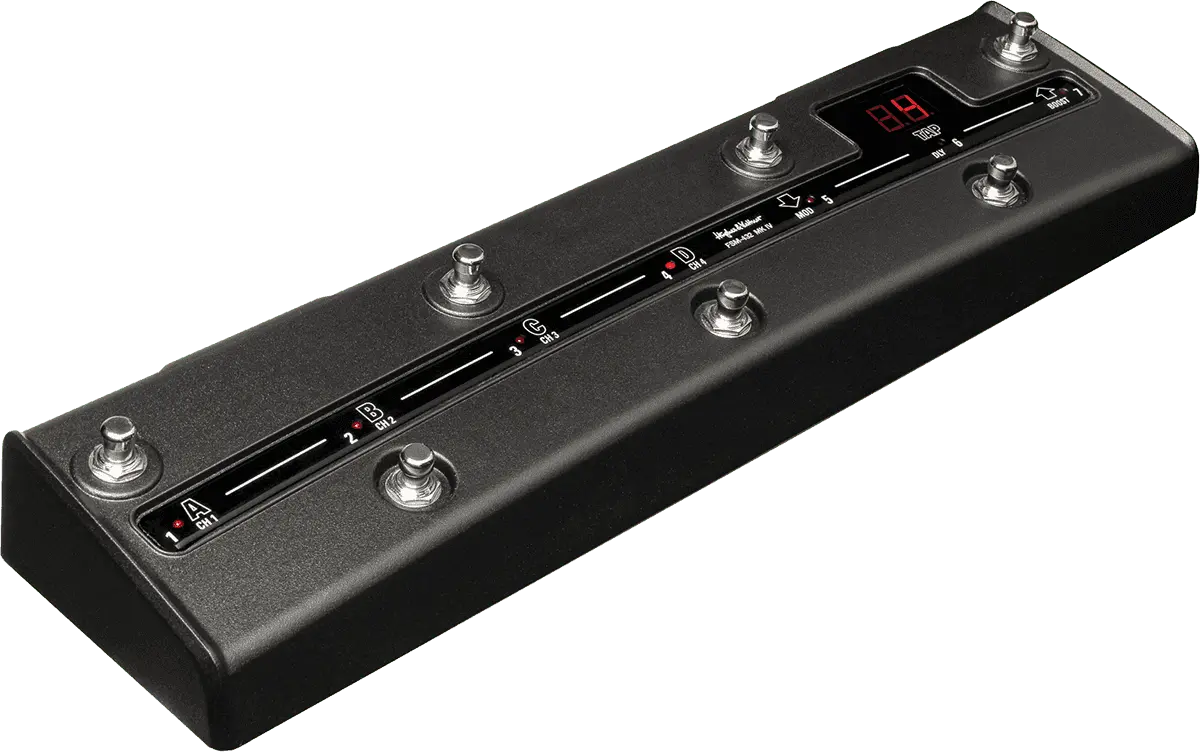

The FSM-432 MK4 MIDI Board doesn’t just serve to select presets. The stomp box mode allows you to switch channels directly, and to activate modulation effects, delay and boost independently. It also offers two 1/4″ jack inputs to connect expression pedals or single footswitches. Both inputs are freely assignable to remote control any pot and switch of the GrandMeister Deluxe 40/GrandMeister 36 in realtime. The MK4 is fully compatible with the MK II, MKIII and also works as well with TubeMeister Deluxe 40, TubeMeister 36, Coreblade and Switchblade.
- Midi pedal for GrandMeister Deluxe 40, TubeMeister 40, Black Spirit 200 head/combo
- Compatible with GrandMeister 36, TubeMeister 36, Coreblade and Switchblade
- 128 storable presets (32 banks with 4 presets each)
- 3 operating modes (Preset, Stompbox, Direct 7)
- Preset mode: classic selection of 4 presets via navigation through the 32 banks
- Stompbox mode: individual selection of channel/modulation/delay/boost blocks
- Direct 7 mode: direct selection of 7 favorite presets
- Tape Delay function via dedicated switch

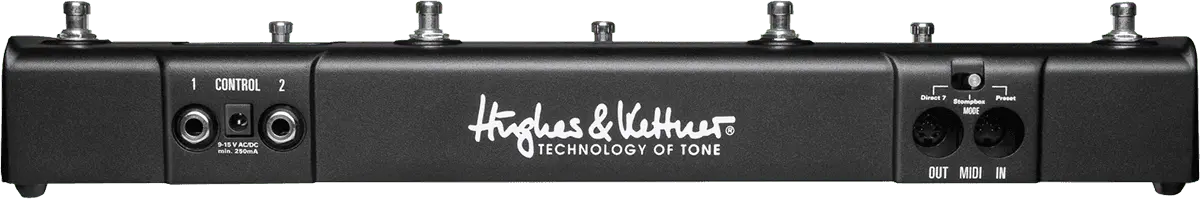

- 5-pin Midi input
- 7-pin Midi output (5-pin compatible)
- 2 jack inputs for external footswitch/expression pedal control
- Power supply: DC 23V phantom via included Midi cable
- Optional power supply input: 9-15 V / 250 mA minimum
- Firmware update via Midi socket
