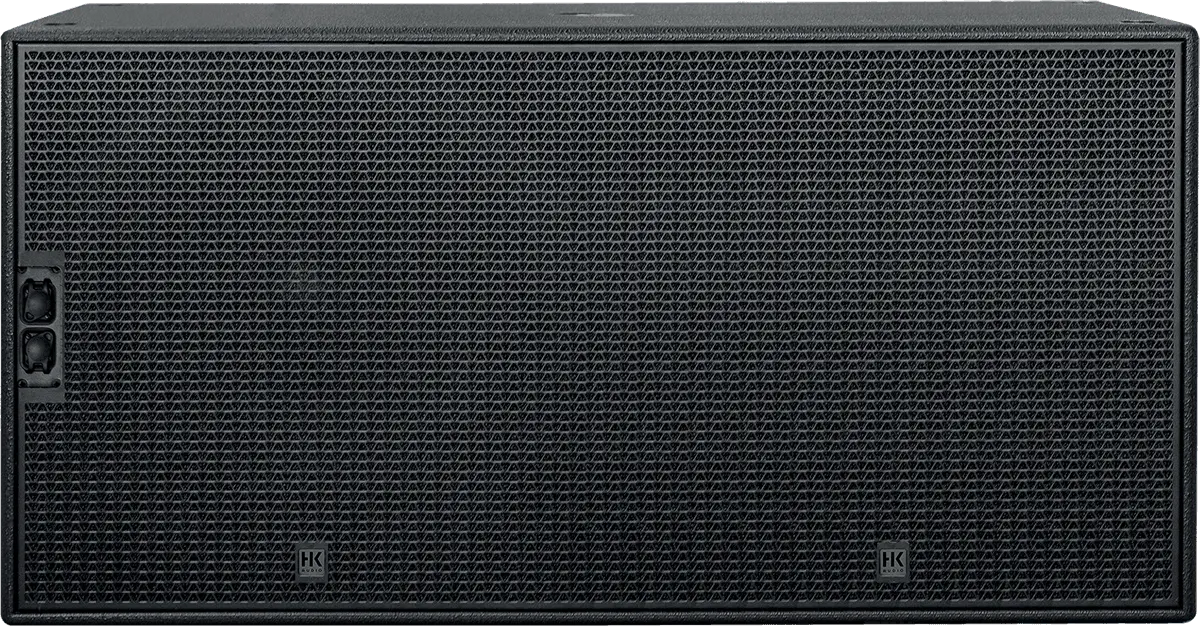

CS 218

CS 219

CS 218

Artno: 540086

77 599 kr (inkl. mva)



The CS 218 and CS 118 subwoofers‘ characteristics, phases and dimensions are matched so they can easily be combined to configure subwoofer clusters that deliver excellent audio performance. Like the smaller CS 118, the CS 218 s dimensions are tailored for a perfect fit on standard pallets and truck beds. The CS 218 is also equipped with same four Speakon NL4 connectors as the CS 118. The Pin Assignment switch serves to assign the C-SUB 218 to one of the two speaker busses. LAB.Gruppen PLM+ and Powersoft X series high-performance power amps are recommended for use with the CS 218. Special filter sets are also available for these controller-driven amps if you wish to configure cardioid or end-fire setups. The CS 218 shares the same robust DNA as the CS 118: The tough, rugged hardware ensures these speakers will retain their value even after years of intensive use. Applications: Subwoofer or sub-low unit for CONTOUR X Series speakers and COSMO line array systems.

• Power-handling nominal (RMS): 3200 W

• Power-handling, program: 6400 W

• Frequency response -10 dB: 23 Hz - 100 Hz

• Frequency response +/- 3 dB 27 Hz - 100 Hz

• Sensitivity 1W/1m: 94 dB (30 Hz - 100 Hz), full space

• Max SPL @ 10% THD (EN 60268-21:2018): 133 dB

• Nominal impedance: 4 Ohms

• Low/Mid Speaker: 18" with 4" voice coil

• Connections: 4x Speakon NL4 (with Dustcap), Pin assignment switch

• Enclosure: birch multiplex

• Finish steel front grill with anticorrosive coating, acoustic foam

• Grille: PU coating

• Handles: 8x HK Audio MultiGrip

• Integrated pole mount: 2x M20

• Dimensions: (WxHxD) 120 x 60 x 78 cm / 47-1/4 x 23-5/8 x 30-45/64 "

• Weight: 88 kg / 194 lbs
